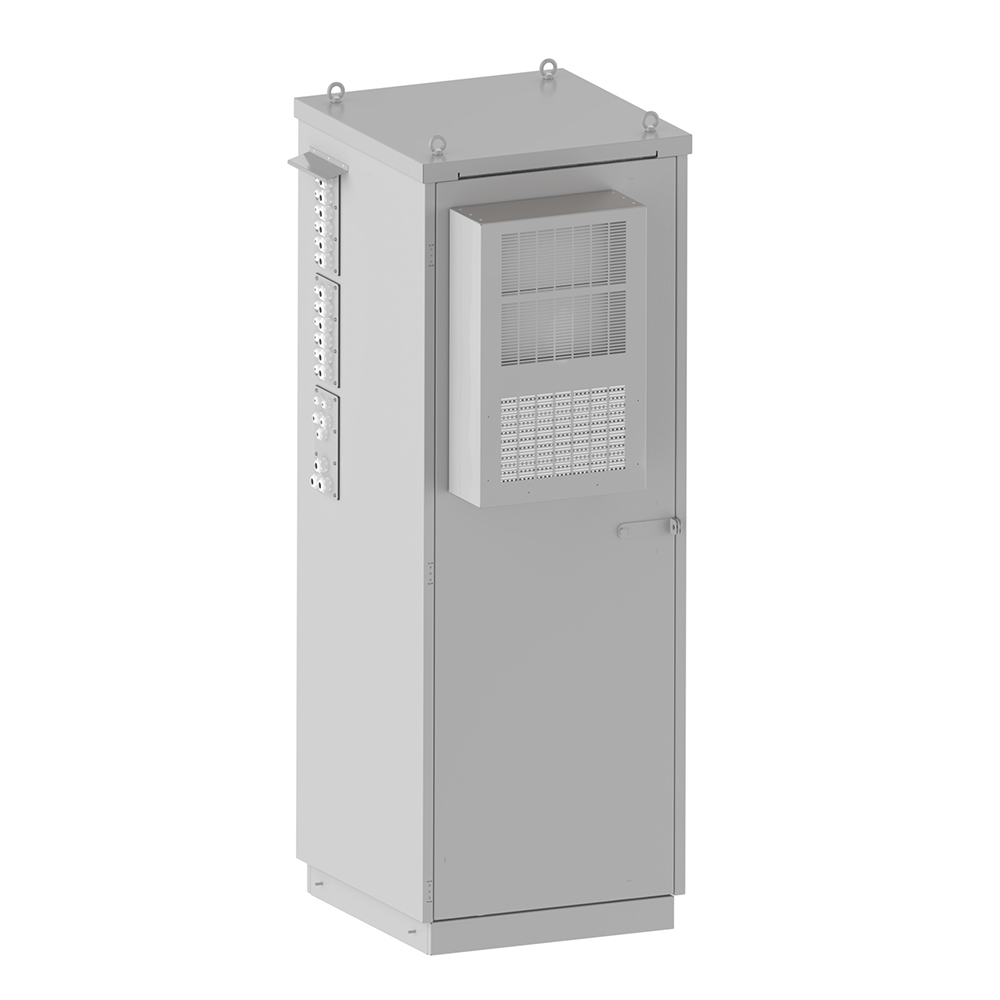

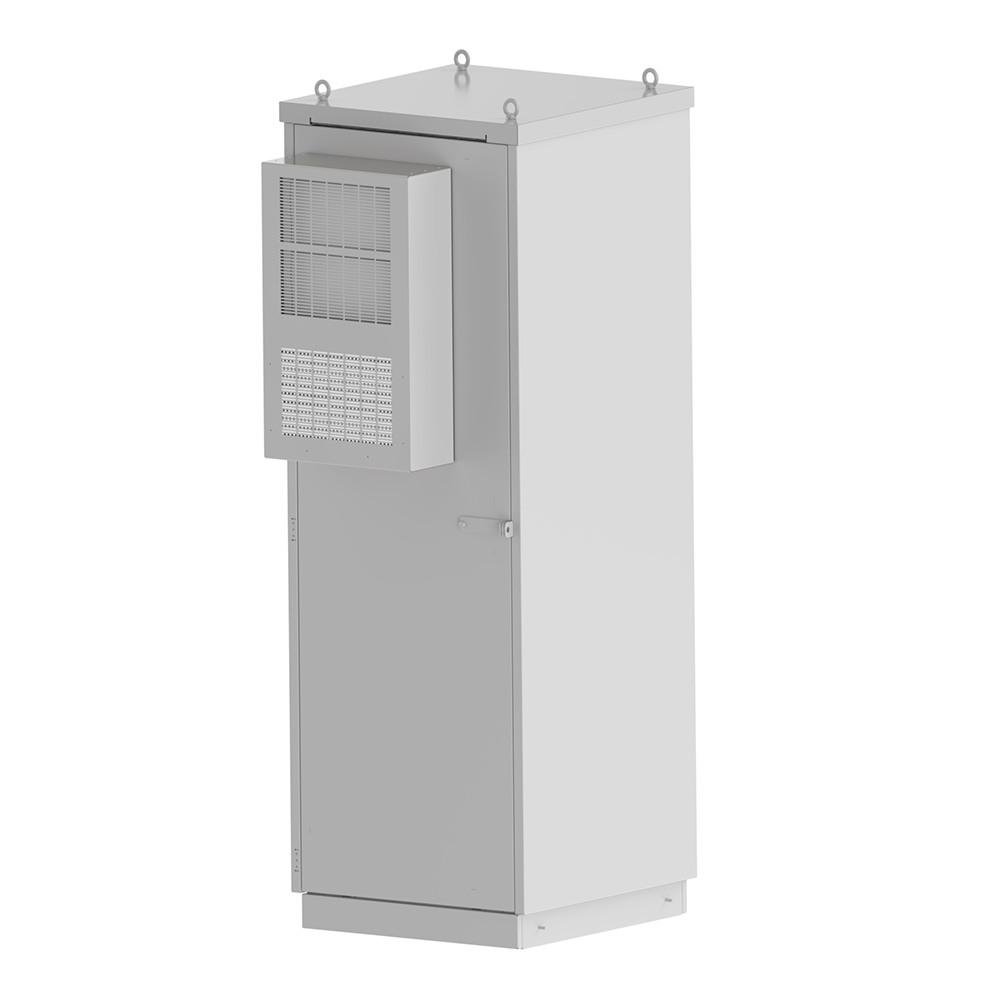

Climate Cabinet IPCOM GUARDIAN M Alfa 42U A2 2kW
Delivery
Payment The IPCOM outdoor all-weather climatic cabinet is designed for the installation of active and passive telecommunication equipment. Protects against environmental influences and unauthorized access. An excellent solution for building networks (providers, security agencies, enterprises, etc.), if there is a need to place equipment on the street.
Telecommunication climatic cabinets are operated at temperatures from -40 ° C to + 40 ° C. Inside the cabinet, the required temperature is maintained by cooling fan blocks or air conditioning, as well as by a heat fan.
When developing the new Guardian series, the wishes of our customers were taken into account:
- for the convenience of placing and installing equipment, climatic cabinets have a modular design with the ability to change the height and depth of the racks;
- the ability to choose an air conditioner (fan, air conditioner);
- connectors for cable entry are located at the bottom and front.
| Dimensions (WxDxH), mm | 800x2255x824 / 1034 taking into account the relocation of the climate control unit |
| Clockspeed | mechanical |
| Weight | 285 |
| Диапазон температур | +5...+35 |
| Working height of installed equipment, U | 22 |
| Cable glands | PG9 - 14 pcs, PG16 - 3 pcs, PG21 - 14 pcs |
| Construction | Knock-down. The structure is based on a welded steel frame |
| Degree of protection | IP55 |
| Heater | 1000W |
| Inner shell,mm | galvanised steel 0.65 mm |
| Number of doors | 1 |
| Outer shell, mm | steel 1.5 mm |
| Type of execution | floor-standing |
| Type of insulation | mineral wool |
| Color | RAL7035 |
