Fiber Optic Box IPCOM FOB-05-12

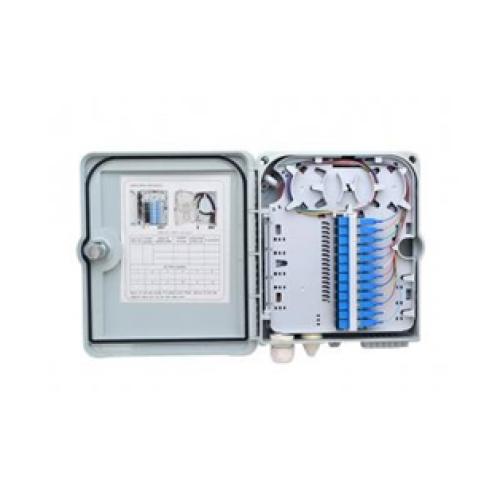

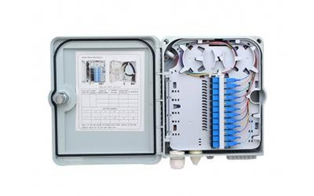

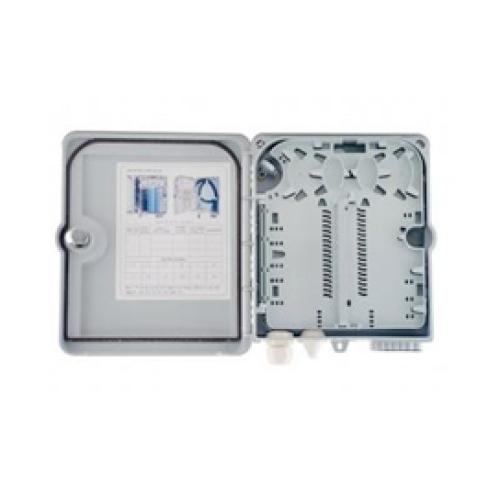

Fiber optic box FOR-05-12 is designed for switching and distribution of optical lines in networks with deep optical penetration (FTTH, FTTB, PON). The robust box body is made of UV-resistant plastic. To limit unauthorized access to the fibers, the box is lockable. Protection against moisture and dust is provided by rubber gaskets and plugs. Full immersion in water during operation is not allowed. Fiber optic box FOR-05-12 allows to insert 2 line (trunk) cables and 12 subscriber taps. The hinged panel inside the box is designed to accommodate 12 SC optical adapters on one side and 38 fiber connections on the other side. For installation of

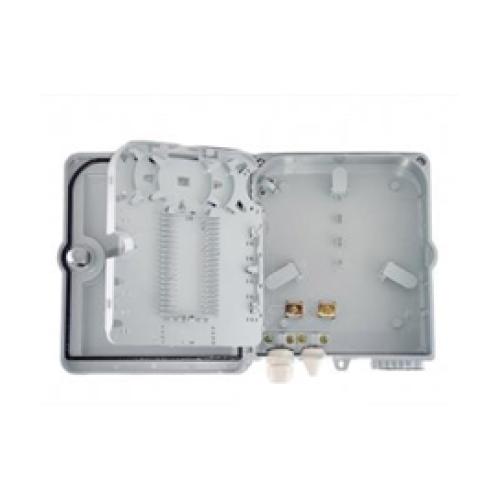

convenient fiber organizers are provided on both sides of the panel. The back of the box can accommodate a stock of subscriber cable, and there are 3 additional places to install SC adapters. They can be used to switch additional passive devices placed in the box, for example,

an optical splitter. Fiber optic box FOR-05-12 can be mounted on walls or other flat surfaces. Pole mounting is possible with
