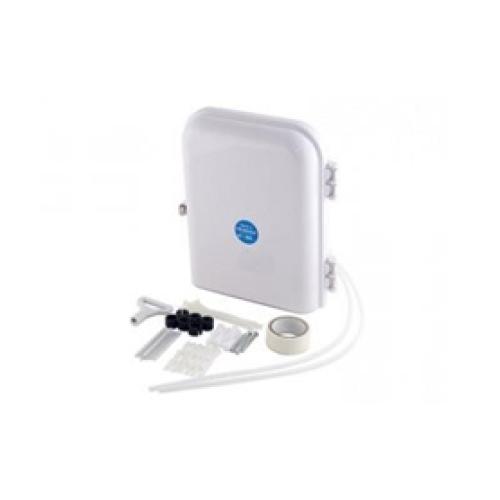

Fiber Optic Box IPCOM FOB-03-12
Fiber optic box FOR-03-12 is designed for use in fiber optic networks with deep optical penetration (FTTH, PON, etc.). The cross-box can be used as a cross-node in the implementation of input-distribution devices, telecommunication crosses.Fiber optic box FOR-03-12 is a durable plastic housing with cable and optical connectors located inside. The plastic of the housing is stabilized against UV radiation and temperature fluctuations. A rubber gasket protects the cross-box from dust and water splashes, which allows it to be used in open spaces. It is not allowed to completely immerse
of the optical box into water during operation. The design of the box mounts allows it to be placed both on poles and on walls or other

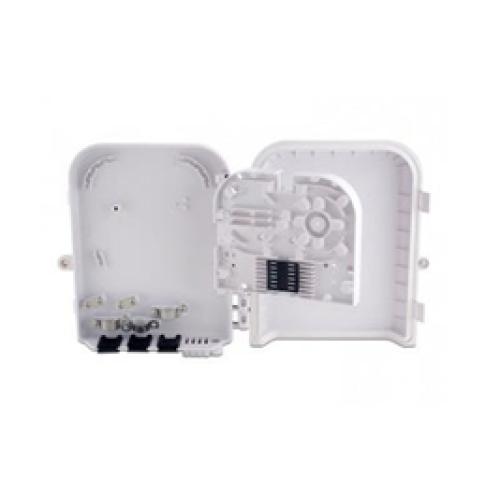

surfaces. Inside the box there is a hinged mounting panel with a bracket for mounting up to 8 SC-type optical adapters. On the other side of the panel there are places for fixing protective sleeves and placing optical PLC dividers. This design allows to provide excellent functional and ergonomic qualities with small dimensions of the box itself.The design of removable glands for line cables allows to insert a cable loop into the fiber optic box FOR-03-12 without cutting the cable itself. Special screw for fixing the cover
restricts access to unauthorized persons inside the box. Dimensions: 200×230×60mm.
